UI Components

NExS provides several UI components to enhance your apps: sliders for numeric input, LED indicators for status display, and buttons for actions and navigation.

Sliders

Sliders provide a visual way to input numeric values. They link to an editable cell and update it as users drag the slider.

Basic Slider

A slider needs two cell references: cell determines where the slider appears in your view, while linkedCell specifies which editable cell receives the value when users drag the handle.

Slider Range

By default, sliders range from 0 to 10 in increments of 1. You can customize these bounds to match your data—a percentage slider might go from 0 to 100, while a quantity selector might use larger steps to keep the interaction snappy.

Slider Styling

Sliders can be customized to match your app’s visual style. The color property sets the handle color using a hex value like #337ab7, while shape controls the handle appearance—choose from round (the default), square, or triangle.

Global Slider Options

Set defaults for all sliders:

LED Status Lights

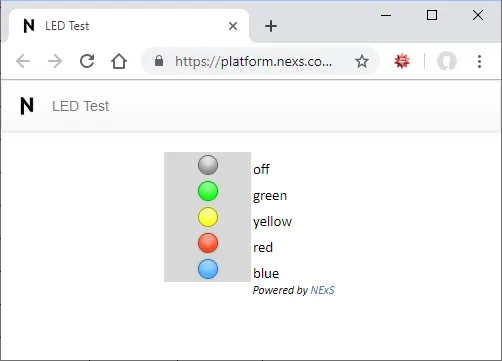

LED indicators provide at-a-glance status information—perfect for dashboards showing pass/fail states, system health, or alert levels. The LED’s color is controlled by the cell’s text value: red, green, yellow, or blue light up the corresponding color, while any other value displays a gray “off” state.

Basic LED

LED Sizing

Options: small, medium (default), large

Using LEDs with Formulas

Make LEDs dynamic by using formulas in the linked cell:

=IF(B5>100, "green", IF(B5>50, "yellow", "red"))

This shows:

• Green when B5 > 100
• Yellow when B5 is 51-100
• Red when B5 ≤ 50

Global LED Options

Buttons

Buttons trigger actions when clicked. They can navigate between views, submit data, display alerts, or run custom JavaScript.

Basic Button

Cell A10 becomes a clickable button. The cell’s content is the button label.

Multiple Buttons

Button Actions

Button actions are defined in the cell content using a special syntax: Label {action: parameters}

Navigate to Another View

Next Page {setView: 'Page 2'}

Set Input Values

Clear Form {setInputs: ['B3', '', 'B4', '', 'B5', '']}

Or clear a range: Reset {setInputs: ['B3:B10', '']}

Cell addresses refer to inputs in the current view. To set an input on another view, prefix the address with the view name and !, e.g. View2!A2. If the view name contains spaces, wrap it in single quotes: 'View 2'!A2.

Next {setInputs: ['View2!A2', 'Yes'], setView: 'View2'}

Submit Data via Email

Submit {sendData: 'A1:C10'}

Sends the specified range to the email addresses in submitList. If submitList is not set, the email goes to the app owner.

sendData replaces the deprecated SubmitButton feature.

Display an Alert

Done {alert: 'Your data has been saved!'}

With alert type: Error {alert: {type: 'fail', message: 'Please fill all required fields'}}

Types: success (default), info, warning, fail

Confirm Before Action

Delete {confirm: {message: 'Are you sure?', ok: {setInputs: ['A1:A10', '']}, cancel: {}}}

Like alert, confirm takes a message and an optional type, plus an ok action and a cancel action.

Combining Actions

Chain multiple actions together:

Submit {sendData: 'A1:C10', setInputs: ['A1:C10', ''], setView: 'Thank You'}

This sends data, clears the form, and navigates to a thank-you page.

Button Styling

Style buttons by appending a control object:

Click Me {bg: 'steelblue', fg: 'white', fontWeight: 'bold'}

Available properties:

• bg — Background color
• fg — Text color
• fontWeight — normal or bold
• fontStyle — normal or italic
• disabled — true to disable the button
• hidden — true to hide the button
• extra — Custom data passed to event handlers

Dynamic Buttons with Formulas

Use Excel formulas to create dynamic button behavior:

="Submit {disabled: " & IF(A1="", "true", "false") & ", sendData: 'A1:C10'}"

This disables the Submit button when A1 is empty.

Don’t turn an editable cell into a button: once it’s a button, users can no longer edit it.

Button Macros

NExS provides special macros for common patterns:

%CELL

References the button’s own cell address:

Select {setInputs: ['B1', %CELL]}

If this button is in cell A5, clicking it sets B1 to “A5”.

%REQUIRED

Evaluates to true if any required inputs are empty:

Submit {disabled: %REQUIRED, sendData: 'A1:C10'}

The button stays disabled until all required fields are filled.

Cell Locks (Advanced)

Open mode apps normally give each user an isolated instance, but sometimes you need shared state—like preventing two people from booking the same time slot. Cell locks solve this by providing a limited resource that app instances compete for.

Defining Cell Locks

Define a range of cells as locks in your app configuration. Each cell in the range becomes an independent lock that can be claimed by one user at a time.

Lock Values

Every lock cell is 0 when the app is created and returns 1 once it is locked. Formulas that refer to a lock cell see that value, so you can, for example, disable the button for a slot that’s already taken:

="Reserve {getCellLock: {cell: 'Sheet2!A1', success: {setView: 'Confirm'}, fail: {alert: 'Slot taken'}}, disabled: " & IF(Sheet2!A1=1, "true", "false") & "}"

Lock Actions

The getCellLock action attempts to claim a temporary 15-minute lock. You can specify what happens on success or failure—typically navigating to a confirmation form or showing an alert that the slot is taken.

Reserve {getCellLock: {cell: 'Sheet2!A1', success: {setView: 'Confirm'}, fail: {alert: 'Slot taken'}}}

Once a user completes their booking, confirmCellLock makes the reservation permanent. If they abandon the process, the temporary lock automatically releases after 15 minutes, making the slot available again.

Confirm {confirmCellLock: 'Sheet2!A1'}

To hold the lock only until a certain date, use the object form with expires. Like getCellLock, the object form also accepts success and fail actions:

Confirm {confirmCellLock: {cell: 'Sheet2!A1', expires: '2026-12-31', success: {setView: 'Booked'}, fail: {alert: 'Your hold has expired'}}}

expires takes a date only, in YYYY-MM-DD format; times and full timestamps are rejected. The lock lapses at midnight at the start of that date (server time), not the end, so to hold a slot through December 31, use 2027-01-01. Without expires, the lock stays until it is released.

An app instance must already own the lock (from getCellLock) before confirmCellLock succeeds. The app owner can lock a cell with confirmCellLock regardless of its current state or owner.

Users can also explicitly release their lock with releaseCellLock if they change their mind. Only the instance that set the lock, or the app owner, can release it.

Cancel {releaseCellLock: 'Sheet2!A1'}
